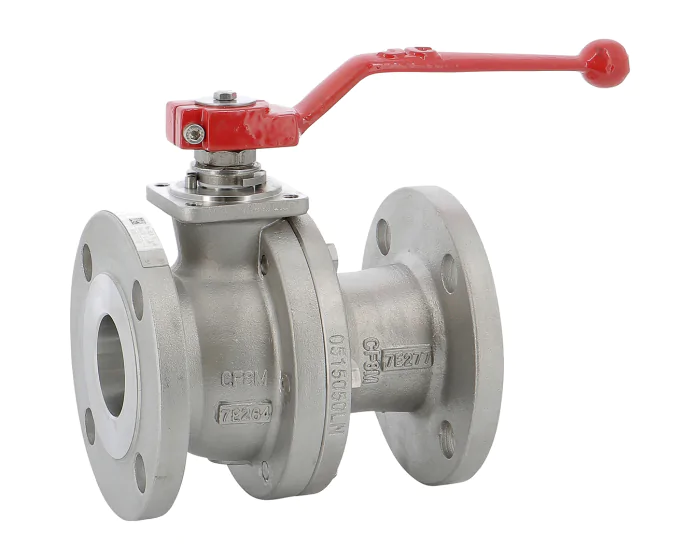

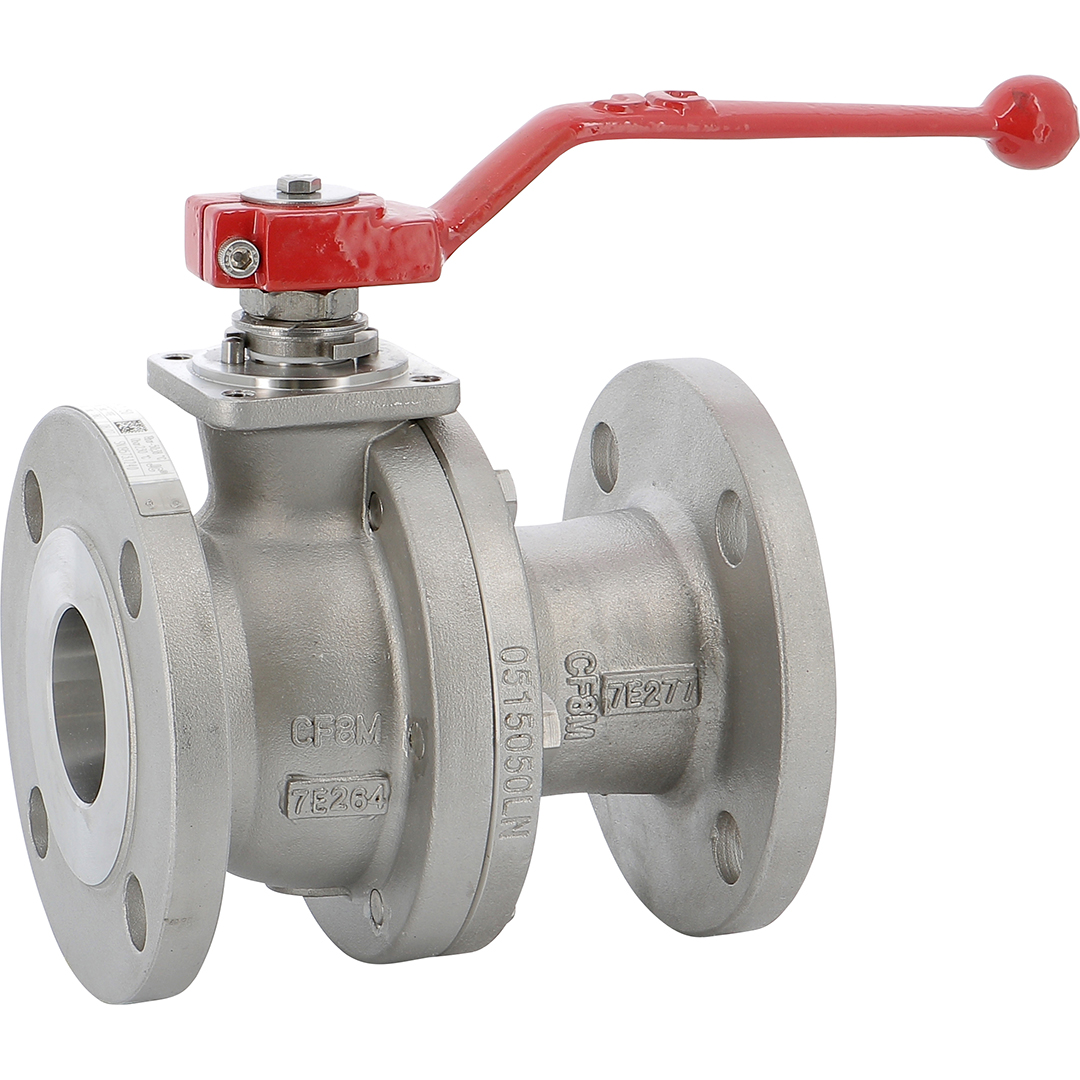

The Sferaco 515IIT series ball valve, 2-piece body with stainless steel and PTFE seat, from the Split Body JC range, PN20 Class150 flanges, full bore, antistatic system for chemicals, water.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 1983 - ISO 17292 - ASME B16.34 - API 6D |
| CE risk category | IV Module H1 |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 3 |
| ASME face-to-face standard | ASME B16.10 |
| Face to face standard | EN 558 Series 3. ASME B16.10 |
| Brand | JC VALVES |
| Tightness test standard | API 598 |
| Stem sealing material | Graphite gland packing |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| Square, star (mm) | MEP M12x9 |
| ATEX compatible | Yes |
| Torque (Nm) | 9 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 108 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 20 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 20 |
| Connections | Flanged #150 PN20 |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A479 Tp 316 |
| TS max (°C) | 230 |
| TS min (°C) | -50 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 5 years |
| CE | Yes |
| Handle material | Ductile iron |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2'' | 515IIT015 | S1006944 |
€170.87
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4'' | 515IIT020 | S1006945 |
€186.50
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN25 - 1'' | 515IIT025 | S1006946 |
€199.44
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2 | 515IIT040 | S1006947 |
€368.81
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN50 - 2'' | 515IIT050 | S1006948 |
€505.31
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2 | 515IIT065 | S1006949 |
€797.01
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN80 - 3'' | 515IIT080 | S1006950 |
€955.39
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN100 - 4'' | 515IIT100 | S1006951 |
€1,545.07
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN150 - 6'' | 515IIT150 | S1006952 |
€3,374.57
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN200 - 8'' | 515IIT200 | S1006953 |
€6,216.76
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN250 - 10'' | 515IIT250 | S1006954 |
€9,869.23
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full Split body DN300 - 12'' | 515IIT300 | S1006955 |
€19,840.27
(excl. btw)
|
add to cart |
